Compact drive for assembly processes

This customized linear motor axis was specially designed to meet the requirements of a complex assembly process for medical devices.

The axis is delivered as a ready-to-install plug&play drive unit including integrated drive amplifier. The stator of the iron-free LMC linear motor here also serves as the base body for the linear motor axis. The QH15 series linear guideway and the HIWIN magnetic positioning measuring system are mounted on the stator to save space. The micro drive amplifier and the compressed air media supply are installed directly on the aluminium travel block.
​​​​​​​
​​​​​​​The result is one of the most compact linear motor axes on the market – and it is highly dynamic and virtually maintenance-free.

Requirements:

  • Plug&Play subsystem ready for connection
  • Integrated drive amplifier
  • Integrated compressed air media supply
  • Feed force 20N
  • Dimensions max. 300mm x 75mm x 65mm (LxWxH)
  • Stroke 210mm
  • Maintenance interval > 5,000,000 cycles


HIWIN components:

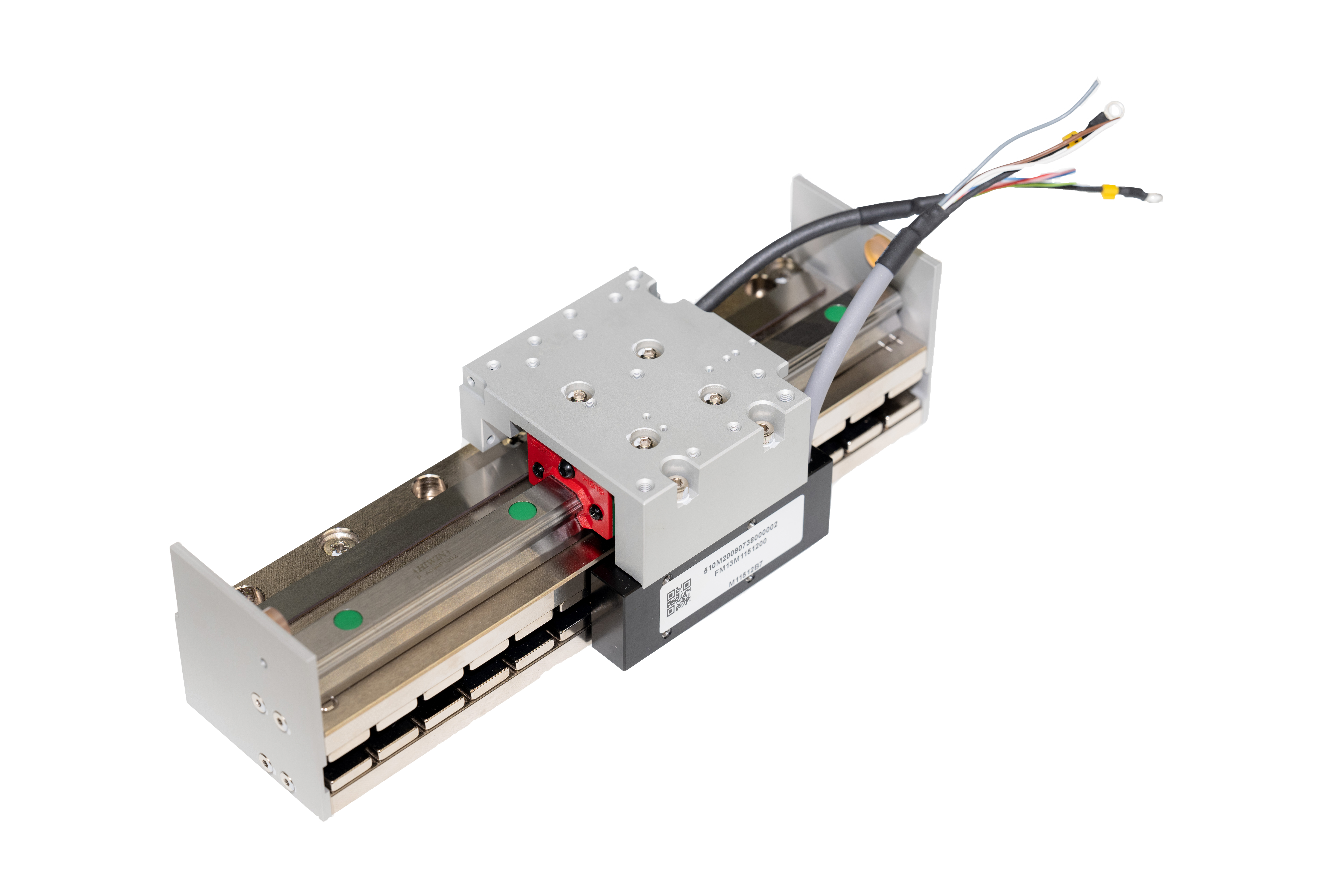

2021 DvT Achse-5749-1.jpg
